Quick Summary
Fiber optic technology has become the backbone of modern communication systems, providing high-speed data transmission over long distances with minimal loss. Central to this technology are fiber connectors, which play a vital role in maintaining the integrity and efficiency of optical networks. Among the various types of fiber connectors, FC and ST connectors are two of the most widely used in the industry. Understanding the differences between these connectors is essential for engineers and technicians involved in the design, installation, and maintenance of fiber optic systems.
This comprehensive analysis aims to explore the structural principles and features of ST and FC fiber optic connectors; a comprehensive comparison covering appearance, performance, installation methods and application of the two types, together with targeted selection recommendations. Help users pick the proper fiber connectors rapidly and avoid common pitfalls in network deployment and installation.
Introduction
Fiber connectors precisely align fibers to deliver low-loss light transmission. Their alignment accuracy directly governs network performance, requiring low insertion loss, high return loss, solid durability and convenient installation. Proper connector selection benefits network operation, maintenance and future expansion. Among mainstream types, ST and FC remain classic options widely used in conventional projects and cabinet wiring.

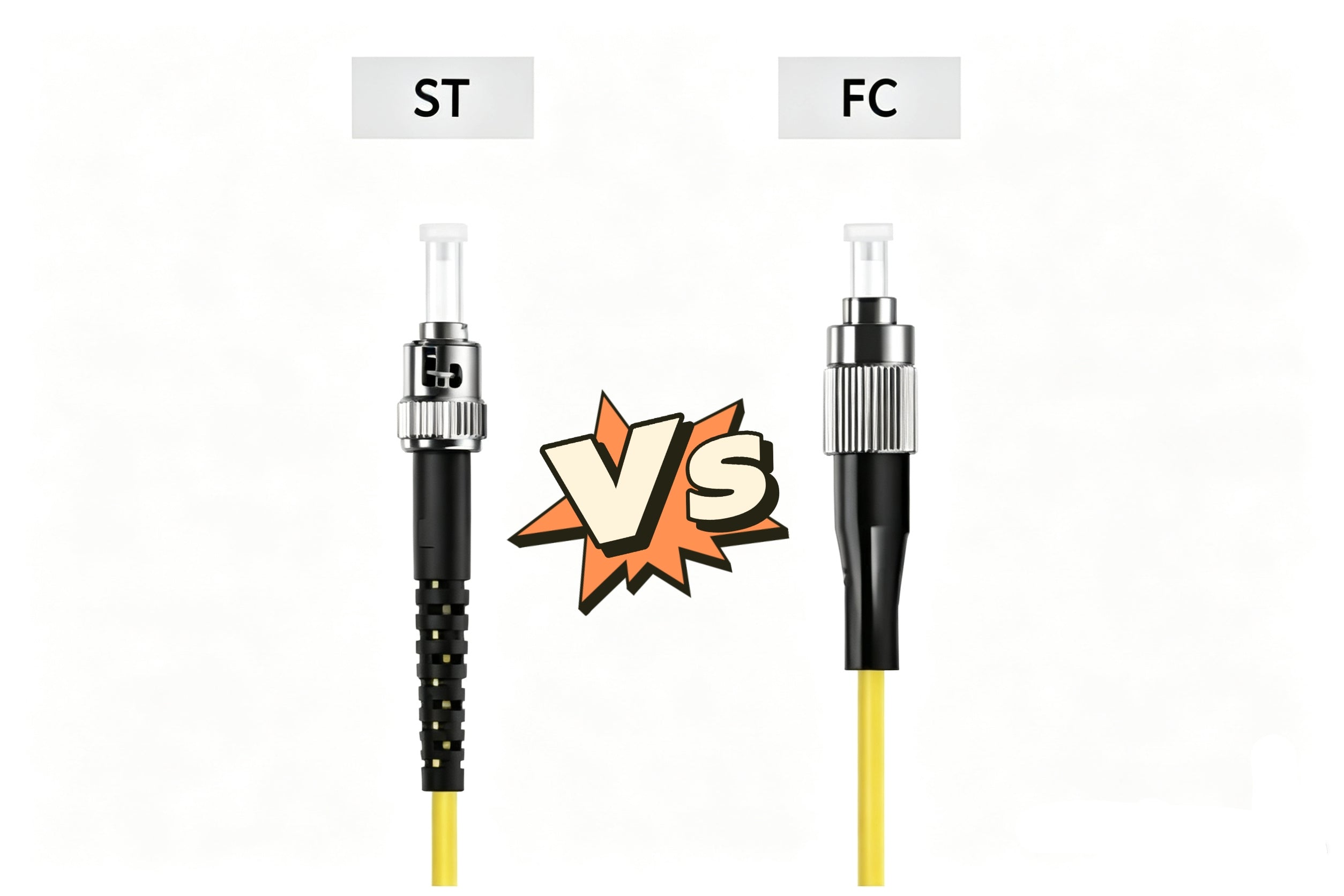

I. The Comparison of ST Connector and FC Connector
-
Coupling Mechanism Comparison:
-FC connectors( Ferrule Connector connectors) feature a threaded coupling mechanism, which secures the connector firmly in place. The connector comprises a cylindrical ferrule, typically made of ceramic, which aligns the fiber core precisely. The threaded feature ensures minimal mechanical play, contributing to a stable and reliable connection.
-ST connectors(Straight Tip connectors) utilize a bayonet-style locking mechanism. They have a spring-loaded, keyed ferrule that locks the connector into place with a simple push and twist motion. The ferrule is typically made of ceramic or metal, providing robust alignment of the fiber cores.
Core Difference Summary: FC uses threaded locking for high stability and anti-vibration performance. ST adopts bayonet lock for quick installation but poorer vibration resistance. Their coupling structures are the key distinction.
-
Performance Characteristics Comparison
-FC features threaded locking structure with steady mechanical performance. Its typical insertion loss stands at approximately 0.3 dB alongside superior return loss. Reliable thread fastening effectively resists vibration disturbance, curbing signal attenuation and reflected light, well suited for high-precision single-mode wiring sensitive to back reflection.
-ST adopts bayonet snap-in locking for fast plug-and-unplug. Its insertion loss ranges from 0.25 dB to 0.5 dB, comparable to FC in overall loss level. Yet its bayonet lock is inferior in mechanical stability, prone to vibration-caused extra signal loss, resulting in poorer return loss performance versus FC.
Core Difference Summary: While the two deliver roughly equivalent insertion loss, FC outperforms ST on return loss thanks to tighter structural fixation.
-
Environmental Adaptability & Durability Comparison
1. FC Fiber Connector
a. Environment suitability: Solid threaded structure fits outdoor & harsh industrial sites.
b. Durability: Threaded locking endures more plug cycles, less performance attenuation after frequent mating.
c. Temp & corrosion resistance: Same -40℃~+85℃ working range as ST; superior dustproof and moistureproof after sealing.
d. Merit: Excellent for rugged field conditions.
2. ST Fiber Connector
a. Environment suitability: Only applicable to stable indoor scenarios such as computer rooms and offices.
b. Durability: Bayonet structure wears faster under frequent repeated plugging.
c. Temp & corrosion resistance: Shares standard operating temperature range; inferior dust and moisture resistance vs FC.
d. Shortcoming: Not recommended for complex outdoor environments.
Core Difference Summary: Both work across identical standard temperature range. FC outperforms ST in durability and environmental adaptability owing to threaded construction, fit for outdoor/industrial harsh conditions; ST is limited to steady indoor usage with faster abrasion on frequent use.
-
Application Suitability
-FC features high positioning precision and firm threaded locking. It is widely deployed in precision testing instruments, metro backbone networks and long-distance telecom transmission, scenarios demanding steady low-loss signal transmission and long-term reliability. With fewer follow-up maintenance needs, it is preferred for fixed permanent wiring projects.
-Thanks to bayonet quick-plug design, ST enables fast disassembly and reconfiguration. It is dominant in campus networks, enterprise LAN and short-distance multimode data links, especially schools and frequently modified office networks that require convenient repeated plugging.
Core Difference Summary: FC targets long-haul, high-precision fixed communication projects with low maintenance; ST focuses on short-distance local networking needing flexible frequent rewiring.
II. Existing Limitations of Both & Industry Development Trend
As classic mature connectors, ST and FC have inherent structural limitations: bulky dimension and low integration, which make them unsuitable for high-density cabinet cabling in modern data centers.Miniaturized LC, MU and high-density MTP/MPO emerge to satisfy high-density layout needs and dominate newly-built intensive wiring projects, yet cannot replace the unique advantages of ST and FC.ST and FC excel in vibration resistance and connection stability, so they keep massive usage in traditional telecommunications, industrial field construction and precision testing equipment. They will retain indispensable market share and won’t be eliminated shortly.
Though restricted in high-density deployment scenarios, ST and FC maintain irreplaceable value in conventional engineering relying on outstanding mechanical stability, achieving long-term coexistence with miniaturized connectors.
